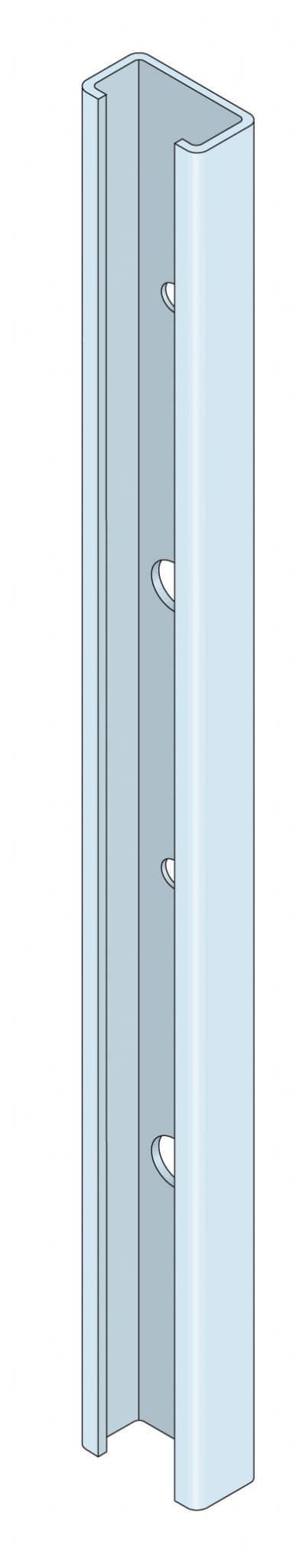

Ancon 25/14 Plain Channel 2.7M Length

Name: Ancon 25/14 Plain Channel 2.7M Length
Brand: Ancon
SKU: 25/142700
Price: 18.14 GBP
Availability: InStock

Ancon 25/14 Plain Channel 2.7M Length

£15.12 £18.14 (inc. VAT)

Stock Status: Item Carried From Stock

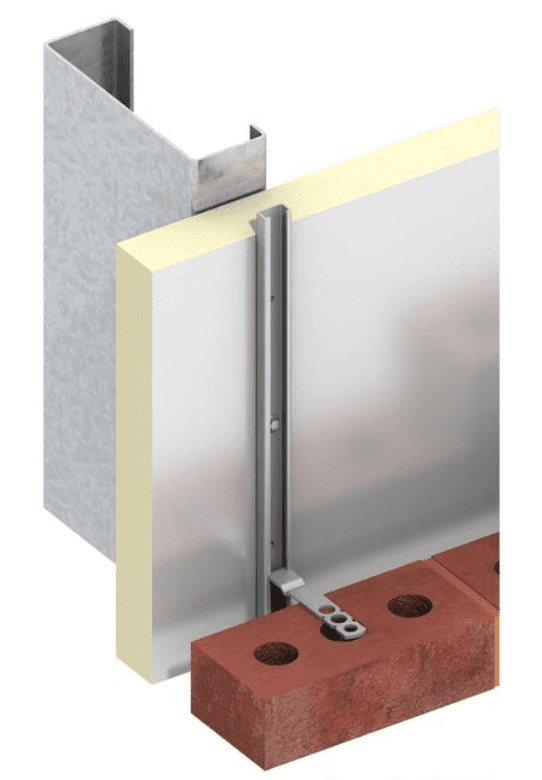

The Ancon 25/14 Restraint System fixes an outer leaf of brickwork to a light steel frame, through any type of insulation.

You Will Earn 18 points with this purchase

QTY

Lead Time:

Next Day Delivery

Brand:

Ancon

Information Specifications Reviews

Self-drilling high-thread screws fix through the channel and the insulation, into the steel.

Once the channel is installed, Ancon SD25 wall ties can be positioned at any point along its length and are built into the bed joints of the outer leaf of brickwork.

Self-drilling high-thread screws are available for use with a maximum combined insulation and backing board thickness of 220mm.

When using rigid insulation board up to a depth of 220mm or Isover Polterm Max Plus, Kingspan Facades K-Roc Rainscreen Slab, Knauf Insulation Earthwool RainScreen Slab and ROCKWOOL Rainscreen Duo Slab up to 180mm, the screws can be installed directly through the insulation.

Data Sheet Download

When using other thicknesses of these insulations or other semi-rigid/ flexible insulations, an Ancon Compression Sleeve (the same depth as the insulation) should be used around the fixing screws to provide the necessary support.

Lead Time:

Next Day Delivery

Brand:

Ancon

Condition:

New

Product Code:

25/142700
