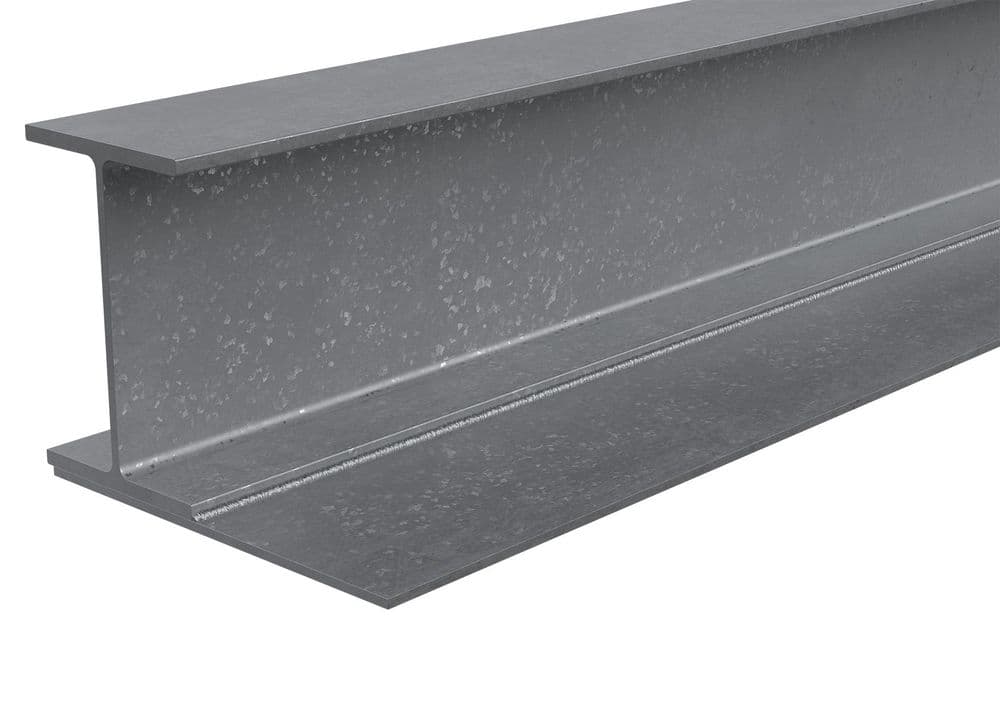

Catnic Lintel CXL290 90-105mm Cavity Wall Lintel Extreme Load

Name: Catnic Lintel CXL290 90-105mm Cavity Wall Lintel Extreme Load - 3600
Brand: Catnic
SKU: CXL2903600
Price: 2521.92 GBP
Availability: OutOfStock

Catnic Lintel CXL290 90-105mm Cavity Wall Lintel Extreme Load

£1,225.92 £1,471.11 (inc. VAT)

Stock Status: Item requires ordering in from Supplier

Extreme Load Bearing For 90mm Cavity, 110-115mm Inner Leaf

You Will Earn 1471 points with this purchase

QTY

Select a preferred delivery date in the checkout

Lead Time:

7/10 Working Days

Brand:

Catnic

Information Specifications Reviews

EditProduct Benefits

Hot-dipped post galavanised

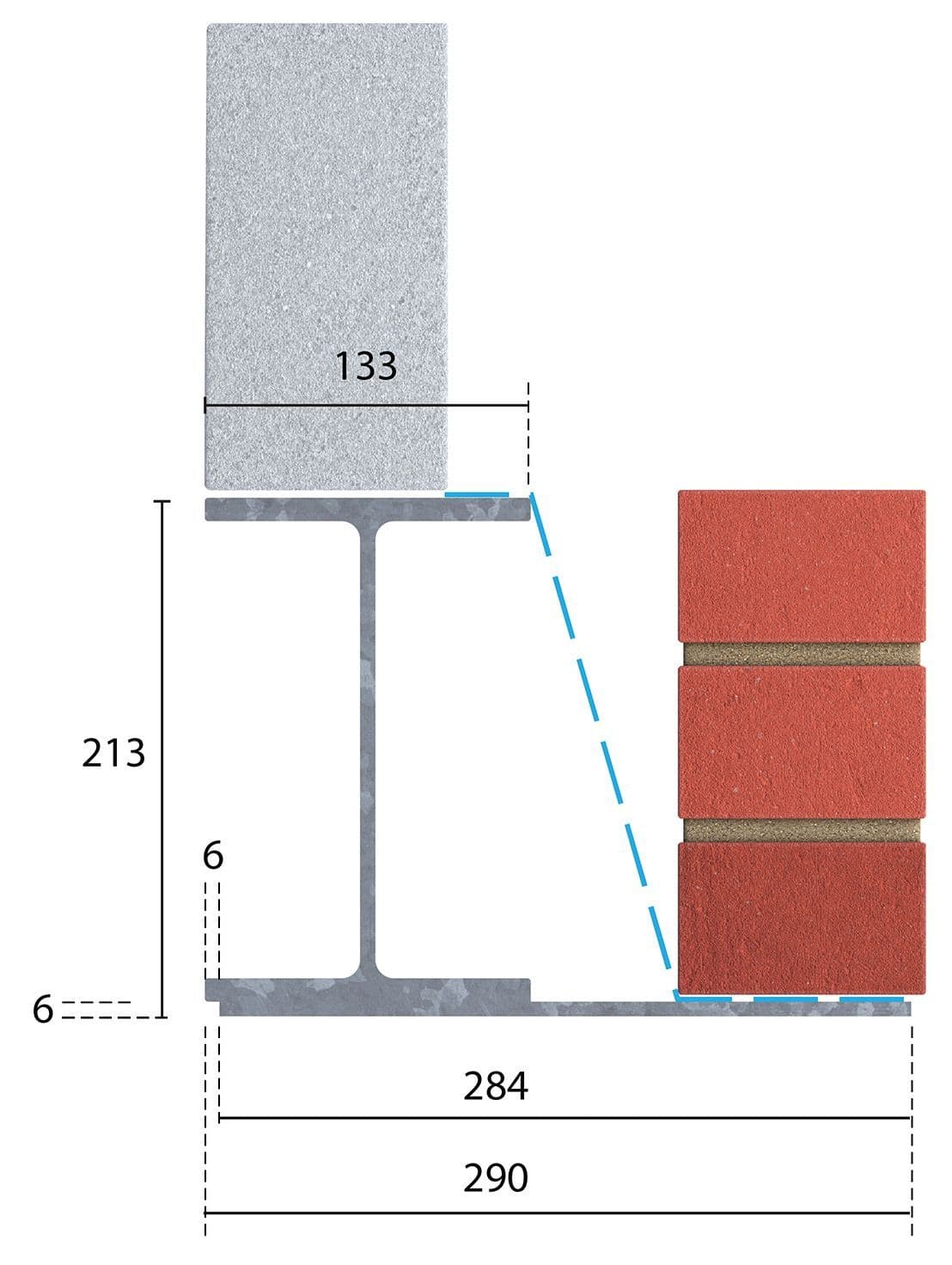

Standard Lengths (mm)	SWL (kN) 5:1/19:1	Weight (kg/m)	Nominal height 'h' (mm)
2100 - 3000	88	43.5	213
3300 - 4800	83	43.5	213
5100	78	43.5	213
5400	71	43.5	213
5700	64	43.5	213
6000	56	43.5	213
6300	52	43.5	213
6600	47	43.5	213

Standard lengths are available in 50mm increments for lengths up to 6600.
The SWL (safe working load) is based on the total UDL (uniform distributed load) over maximum span using 200mm end bearings.
A separate flexible DPC must be installed during construction.
As an optional extra, CXL lintels can be supplied with expanded metal mesh plaster key secured to the base plate.
To achieve the loading figures shown, the lintel must be laterally restrained and have 200mm end bearing supports and inner to outer load ratios between 5:1 and 19:17.
